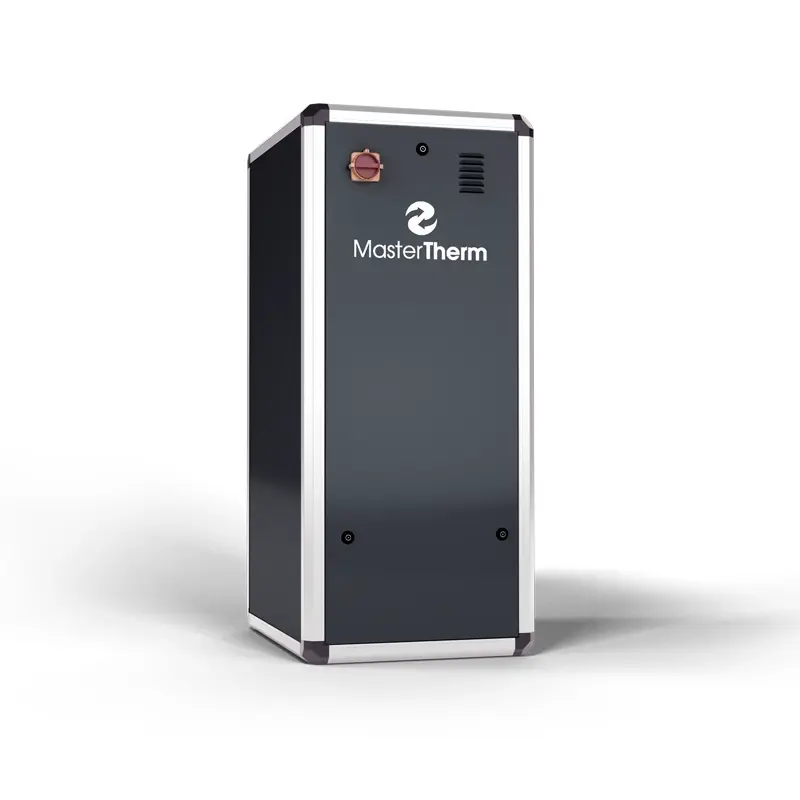

AquaMaster Inverter P Commercial



  • Compact ground-to-water heat pump for commercial and industrial applications with R290 refrigerant
  • Ground-to-water heat pump (or water-to-water on request)
  • Power up to 70 kW (B0W35)
  • Total cascade power of 1100 kW

Designed for heating and cooling (reversible and passive) of large buildings such as office buildings, schools, sports facilities, production or industrial warehouses and others. Also suitable for industrial refrigeration and waste heat recovery systems from industrial processes. Easy to cascade and ensure very high overall performance for large facilities and large industrial operations.

Total safety

Thanks to the low volume of the R290 refrigerant and integrated refrigerant leak detection and automatic shutdown of the unit.



 New Generation

Energy Efficiency
R290 Refrigerant
Outlet Water Temperature up to 75°c
Wide Modulation Range for Max Performance
Online Control & 24/7 Remote Monitoring

Main Features

Engineered Design

  • All-in-one unit: Designed by engineers for engineers with all main components installed inside the unit for simple installation.
  • All accessories including control of circulation pumps integrated into the  unit
  • Full serviceability of all components
  • Absolute reliability thanks to our 20+ years of commercial & industrial experience

Complete Control and Comfort

  • 24/7 remote service monitoring and diagnostics
  • Smart home integration: online 24/7 monitoring, modbus/BMS, integrated electricity meter, communication with PV inverter and batteries, connection to Smart Grids, etc.
  • Active cooling mode or passive cooling (optional equipment)
  • On-board cascading with our unique MasterLAN application for up to 16 units.
  • Suitable for commercial and industrial buildings

Full Flexibility

  • Avaliable in 3 phase version only
  • Customisable units for bespoke applications
  • Minimized noise due to construction with smooth speed control

Leading Performance

  • Max heating water temperature 75 °c
  • Anti-legionella function from compressor only

Engineered Design

Complete Comfort

Full Flexibility and Control

Leading Performance

Technical Details

AquaMaster Inverter P Commercial

AquaMaster Inverter P Commercial

Model Performance at B0W35 Heat Loss of the building Qz Seasonal energy efficiency of heating at 35°c  low temperature operation Seasonal energy efficiency of heating at 55°c medium temperature operation
  kW kW SCOP Class SCOP Class
AquaMaster 45 Inverter P 5–35 up to 35 4,85 A+++ 3,79 A++
AquaMaster 90 Inverter P 10–70 up to 70 TBA TBA TBA TBA

AquaMaster 90IP is supplied without integral circulation pumps.

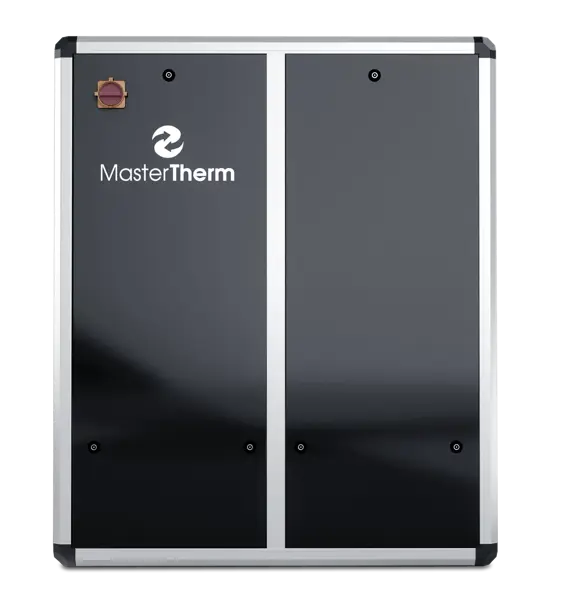

AquaMaster 90IP can be supplied with joining kit to connect 2 x units directly together for 140kW power.
Multiple units can be controlled by 1 x Master on MasterLAN application to 1,100kW power.

All units supplied as standard with Regulation PLUS (pCO5): Designed for multiple-circuit heating systems. 2 independent auxilliary heating circuits including mixing. 2-zone space temperature, can be expanded up to 6 heating circuits with optional extra expansion board.

All AquaMaster Inverter IP units to be installed in compliance with R290 safety requirements and Ventbox can be supplied as optional extra for extraction.

Master Therm Online:

Remote Control and Service Monitoring

Connecting the Master Therm heat pump to the internet allows it to be controlled from anywhere via the web browser on Mastertherm.online or via an app on a mobile phone or tablet. You are thus in full control of your home’s heat, which is within easy reach. Continuous service supervision and remote diagnostics included.

The control system also can cooperate with photovoltaic inverter and can predict future electricity spot prices. It makes the heat pump's operation as economical as possible.

MasterTherm Online

Optional Equipment or Upgrades

Please see summary of optional equipment that can be added to your heat pump during manufacturing for your bespoke solution.

Master Therm Online app

Advanced online control and remote service access.

Extended control module

Up to 6 heating circuits + SHW, for regulation PLUS (pCO5) only.

Additional pGDx touch screens (1 as standard)

Parametrization, temperature compensation, humidity sensor, ethernet or wifi internet connection.

Simultaneous Heating and Cooling

Utilising our on-board control strategy we can provide heating and cooling simulatenously for maximum performance and efficiency.

Passive cooling module ​

Exclusive for ground-to-water heat pumps. Direct heat extraction from the interior of the ground collector or borehole. Extremely economical summer cooling of the building without need for compressor work.

On-board MID approved Electric Meter

For accurate reading and storing of electrical consumption.

MasterLAN Cascade

For connecting multiple units together for higher capacity demands.

Water-to-water design

Adaptation for use on bottom or surface water. Evaporator more resistant to sediment (coax) and different electrical equipment.
