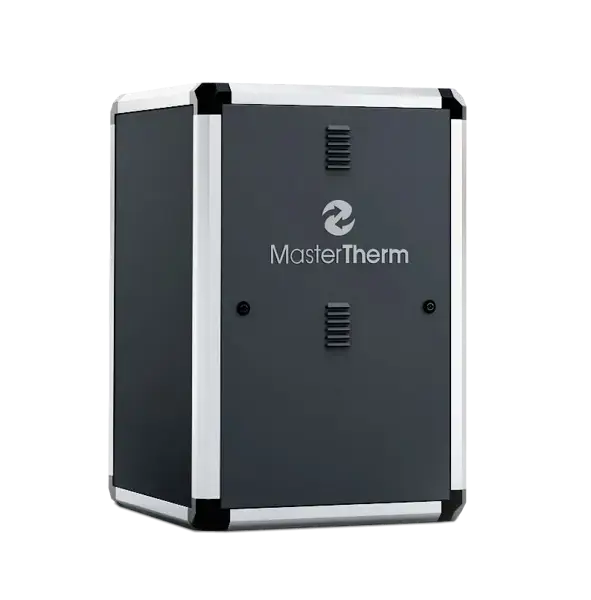

AquaMaster Inverter P

Newest model of GSHP from MasterTherm. Powerful range for domestic and commercial properties with all the latest advanced technical features and performance.

All-in-one

Easy installation. All key components integrated inside unit with in-built source and heating side circulation pumps.

Total safety

Thanks to the low volume of the R290 refrigerant and integrated refrigerant leak detection and automatic shutdown of the unit.

Compact Installation

Compact design with easy installation and incredibly easy for service and maintenance.



 New Generation

Energy Efficiency
R290 Refrigerant
Outlet Water Temperature up to 75°c
Wide Modulation Range for Max Performance
Online Control & 24/7 Remote Monitoring

Main Features

Engineered Design

  • All-in-one unit: Designed by engineers for engineers with all main components installed inside the unit for simple installation.
  • All accessories including control and circulation pumps integrated into the  unit
  • Full serviceability of all components
  • Absolute reliability thanks to our 20+ years of commercial & industrial experience

Complete Control and Comfort

  • 24/7 remote service monitoring and diagnostics
  • Smart home integration: online 24/7 monitoring, modbus/BMS, integrated electricity meter, communication with PV inverter and batteries, connection to Smart Grids, etc.
  • Active cooling mode or passive cooling (optional equipment)
  • On-board cascading with our unique MasterLAN application for up to 16 units.
  • Suitable for individual properties or for installations with a shared ground arrays/heat networks (customised with integrated modulating zone valves).

Full Flexibility

  • Avaliable in 3 phases / 1 phase variants
  • Customisable units for bespoke applications
  • Built-in heating and brine side circulation pump
  • Minimized noise due to construction with smooth speed control

Leading Performance

  • Max heating water temperature 75 °c
  • Anti-legionella function from compressor only
  • Integrated bivalent/immersion heater can be supplied as optional extra

Engineered Design

Complete Comfort

Full Flexibility and Control

Leading Performance

Technical Details

AquaMaster Inverter P Domestic

AquaMaster Inverter P Domestic

Model Performance at B0W35 P-Design Heat Loss of the building Qz Seasonal energy efficiency of heating at 35°c  low temperature operation Seasonal energy efficiency of heating at 55°c medium temperature operation
  kW kW kW SCOP Class SCOP Class
AquaMaster 17 Inverter P 1–5 4 up to 5 4.87 A+++ 3.76 A++
AquaMaster 22 Inverter P 2–8 6 up to 8 TBA TBA TBA TBA
AquaMaster 30 Inverter P 3–12 9 up to 12 TBA TBA TBA TBA
AquaMaster 37 Inverter P 4–17 13 up to 17 TBA TBA TBA TBA

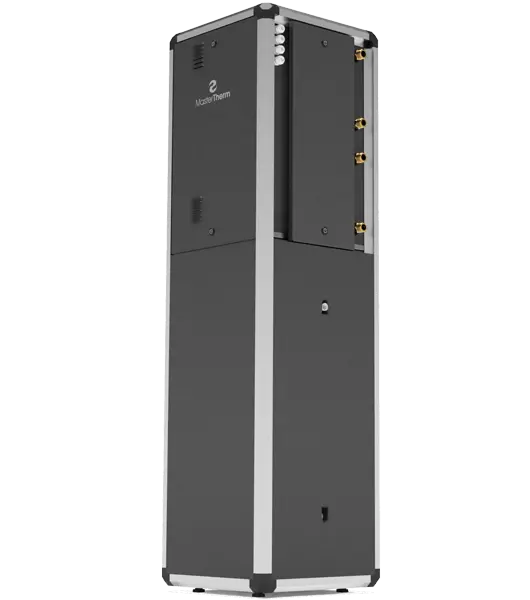

AquaMaster 17 & 22 IP can be supplied in Combi version with integral 150l cylinder for simple installation in low heat demand properties.

All units supplied as standard with Regulation PLUS (pCO5): Designed for multiple-circuit heating systems. 2 independent auxilliary heating circuits including mixing. 2-zone space temperature, can be expanded up to 6 heating circuits with optional extra expansion board.

All AquaMaster Inverter IP units to be installed in compliance with R290 safety requirements and Ventbox can be supplied as optional extra for extraction.

Master Therm Online:

Remote Control and Service Monitoring

Connecting the Master Therm heat pump to the internet allows it to be controlled from anywhere via the web browser on Mastertherm.online or via an app on a mobile phone or tablet. You are thus in full control of your home’s heat, which is within easy reach. Continuous service supervision and remote diagnostics included.

The control system also can cooperate with photovoltaic inverter and can predict future electricity spot prices. It makes the heat pump's operation as economical as possible.

MasterTherm Online

Optional Equipment or Upgrades

Please see summary of optional equipment that can be added to your heat pump during manufacturing for your bespoke solution.

Master Therm Online app

Advanced online control and remote service access.

Extended control module

Up to 6 heating circuits + SHW, for regulation PLUS (pCO5) only.

Additional pGDx touch screens (1 as standard)

Parametrization, temperature compensation, humidity sensor, ethernet or wifi internet connection.

Custom Circulation Pumps

Adjustment to the inbuilt circulation pump to meet the individual system requirements.

Passive cooling module ​

Exclusive for ground-to-water heat pumps. Direct heat extraction from the interior of the ground collector or borehole. Extremely economical summer cooling of the building without need for compressor work.

On-board MID approved Electric Meter

For accurate reading and storing of electrical consumption.

MasterLAN Cascade

For connecting multiple units together for higher capacity demands.

Water-to-water design

Adaptation for use on bottom or surface water. Evaporator more resistant to sediment (coax) and different electrical equipment inside the unit.

Desuperheater for high efficiency hot water

Upgrade to the unit that uses a separate circuit to remove the superheated steam at the compressor outlet and increase the efficiency of hot water preparation. When the compressor is in operation (heating and cooling mode), the energy transferred to the hot water tank.
